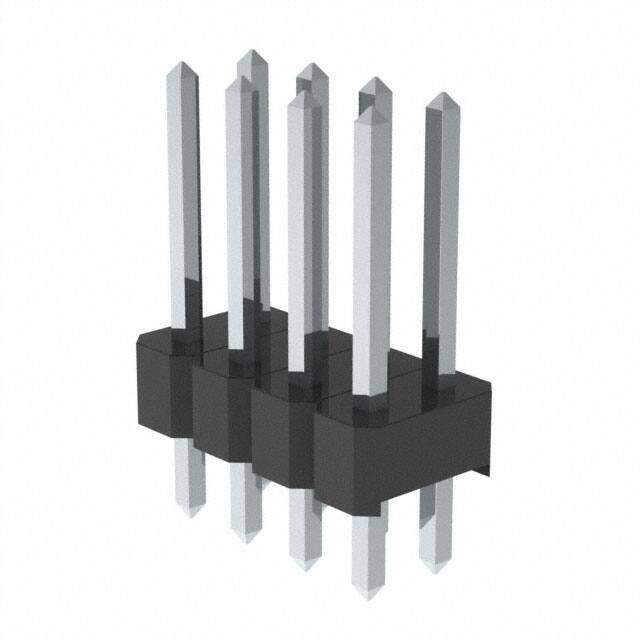

PREC004DFAN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 DUAL STR 8POS
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.1584
≥1 USD $0.1584
≥10 USD $0.13376
≥100 USD $0.102608
≥500 USD $0.086821
≥1000 USD $0.071034
≥3000 USD $0.06314
Inventory: 3930
Minimum: 1
-
+
Technical Details
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2011
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 8
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A per Contact
Insulation Height 0.098 2.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.4 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.318 8.08mm
PCB Contact Pattern RECTANGULAR
Body Depth 0.1 inch
Overall Contact Length 0.537 13.63mm
Mating Contact Pitch 0.1 inch
Dimensions
Plating Thickness 100μin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
