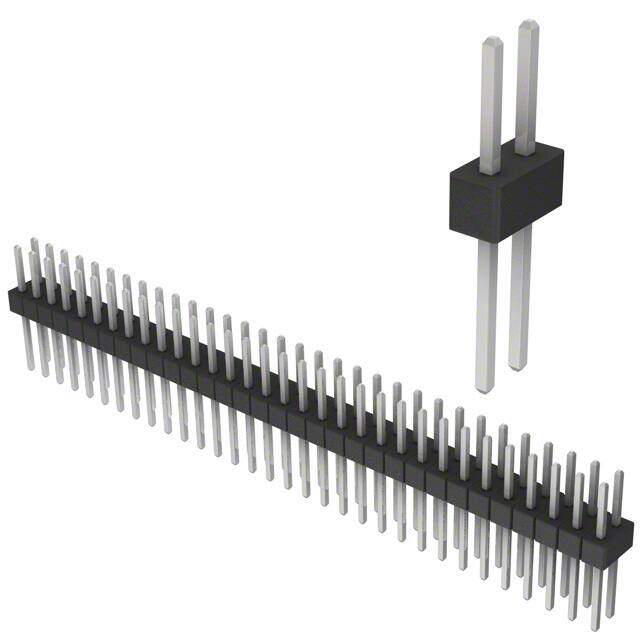

PEC32DACN image
Favorite
PEC32DACN image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER .100 DUAL STR 64POS
PDF
/
Inventory: 4541
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Width 5.08mm
Length 81.3mm
Height 2.54mm

Technical

Overall Contact Length 0.650 16.51mm
Housing Color Black
Contact Length - Mating 0.230 5.84mm
Shrouding Unshrouded
Contact Length - Post 0.320 8.13mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 64
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2005
Packaging Bulk
Operating Temperature -65°C~125°C

Physical

Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
