PEC25SBDN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

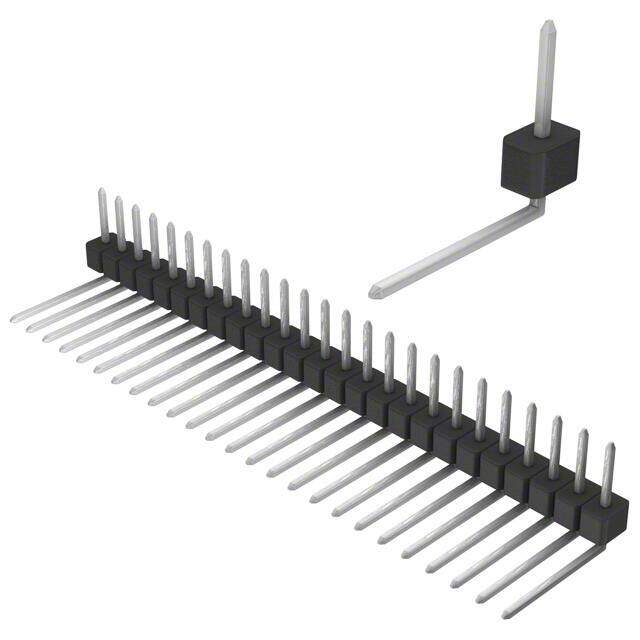

CONN HEADER .100 SINGL R/A 25POS
PDF
/
Inventory: 3599
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Width 2.54mm
Length 63.5mm
Height 3.56mm
Technical
Housing Color Black
Contact Length - Mating 0.230 5.84mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.400 10.16mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.140 3.56mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Number of Positions 25
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Published 2005
Packaging Bulk
Operating Temperature -65°C~125°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
