PEC25SAGN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

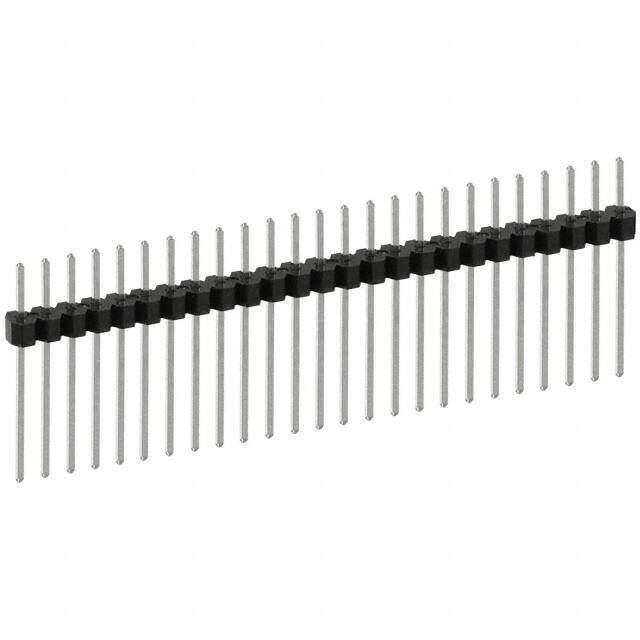

CONN HEADER .100 SINGL STR 25POS
PDF
/
Inventory: 5796
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2005
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 25
Number of Rows 1
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 2.5 inch
Contact Length - Post 0.720 18.29mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.230 5.84mm
Overall Contact Length 1.050 26.67mm
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Length - Termination 0.72 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
