PEC22SADN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

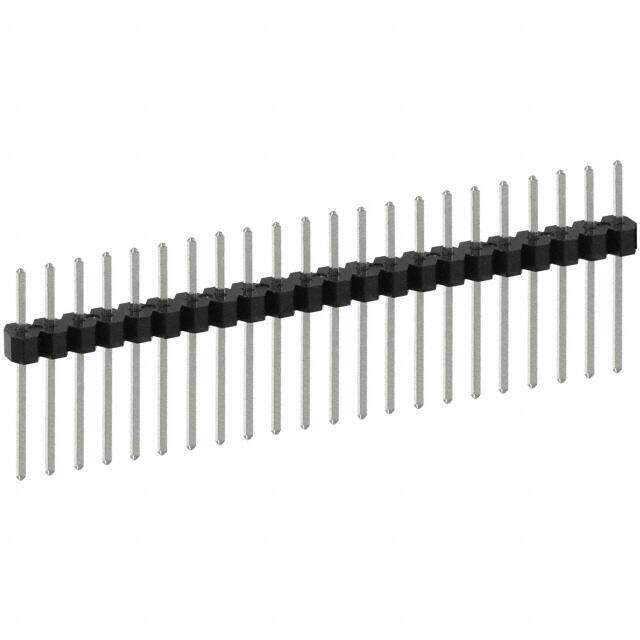

CONN HEADER .100 SINGL STR 22POS
PDF
/
Inventory: 8565
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2005
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 22
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.420 10.67mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.230 5.84mm
Housing Color Black
Overall Contact Length 0.750 19.05mm
Dimensions
Height 2.54mm
Length 55.9mm
Width 2.54mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
