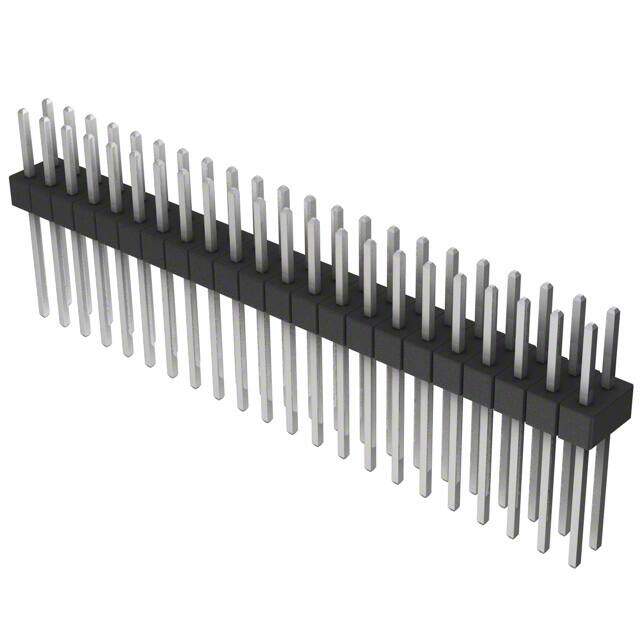

PEC22DADN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 DUAL STR 44POS
PDF
/
Inventory: 2643
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 44
Color Black
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.420 10.67mm
Shrouding Unshrouded
Number of Contacts 44
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
Housing Color Black
Overall Contact Length 0.750 19.05mm
Dimensions
Height 2.54mm
Length 55.9mm
Width 5.08mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
