Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

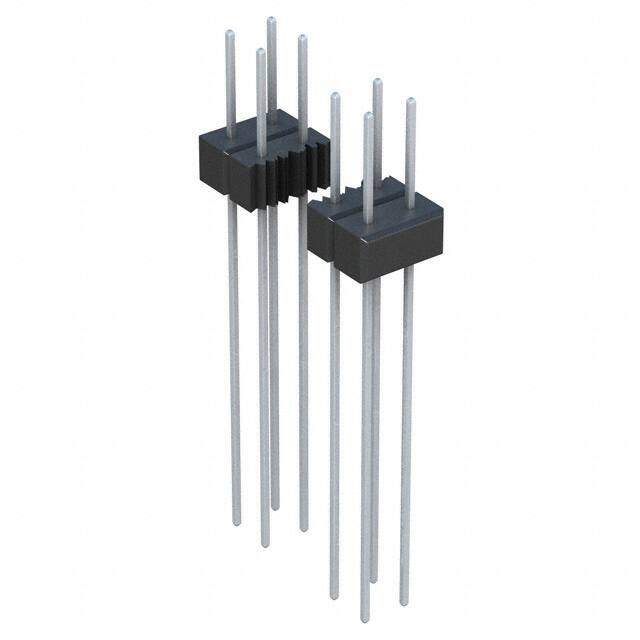

Description CONN HEADER .100 DUAL STR 8POS
PDF
/
Inventory: 8711
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Width 5.08mm
Length 10.2mm
Height 2.54mm

Technical

Overall Contact Length 1.150 29.21mm
Housing Color Black
UL Flammability Code 94V-0
Contact Length - Mating 0.230 5.84mm
Shrouding Unshrouded
Contact Length - Post 0.820 20.83mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 8
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2005
Packaging Bulk
Operating Temperature -65°C~125°C

Physical

Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
