PEC03DAAN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

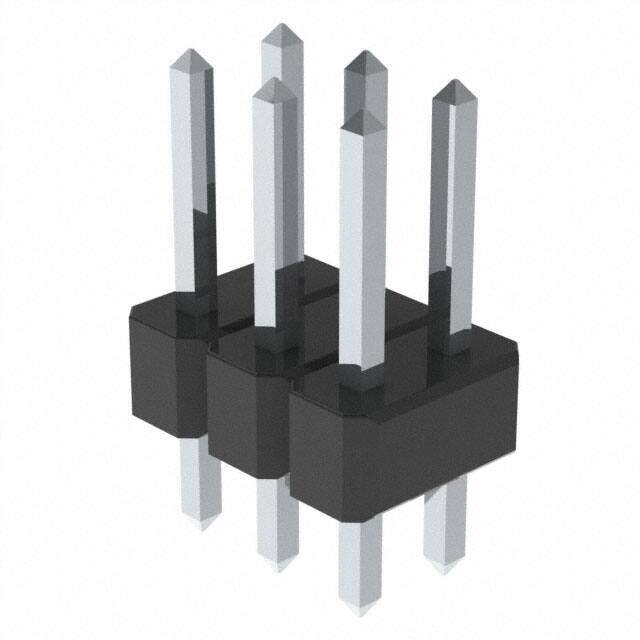

CONN HEADER VERT 6POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
≥10 USD $0.21736
≥100 USD $0.169048
≥500 USD $0.144901
≥1000 USD $0.120745
≥3000 USD $0.103497
Inventory: 8077
Minimum: 1
-
+
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2010
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 6
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Contact Length - Mating 0.230 5.84mm
UL Flammability Code 94V-0
Housing Color Black
Overall Contact Length 0.450 11.43mm
Dimensions
Height 2.54mm
Length 7.62mm
Width 5.08mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
