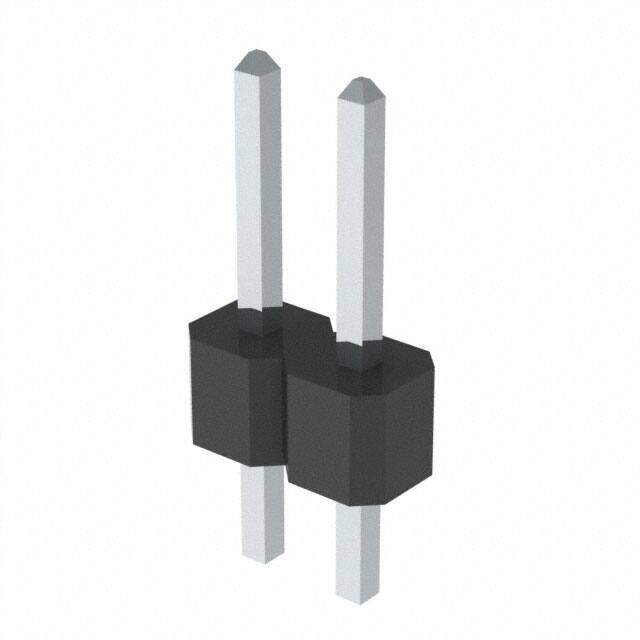

PEC02SAAN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 2POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.13
Unit Price: USD $0.132
≥1 USD $0.132
≥10 USD $0.1056
≥100 USD $0.078056
≥500 USD $0.06461
≥1000 USD $0.05654
≥3000 USD $0.048462
Inventory: 8505
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Width 2.54mm
Length 5.08mm
Height 8.71mm
Technical
Dielectric Withstanding Voltage 600VDC V
Insulation Resistance 5000000000Ohm
Overall Contact Length 0.450 11.43mm
Rated Current (Signal) 3A
Housing Color Black
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Gender Male
Number of Rows 1
Number of Positions 2
Connector Type Header, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2008
Packaging Bulk
Operating Temperature -65°C~125°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
