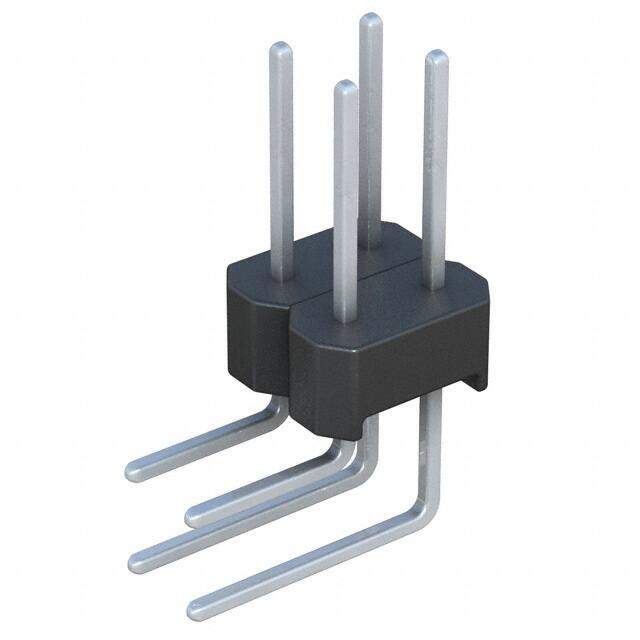

PEC02DBBN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 DUAL R/A 4POS
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.30096
≥100 USD $0.233816
≥500 USD $0.200394
≥1000 USD $0.166989
≥3000 USD $0.143132
Inventory: 1630
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Plating Thickness 10μin
Width 2.54mm
Length 5.08mm
Height 6.1mm
Technical
Mating Contact Pitch 0.1 inch
Housing Color Black
Contact Length - Mating 0.230 5.84mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.200 5.08mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.240 6.10mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 4
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Published 2011
Packaging Bulk
Operating Temperature -65°C~125°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
