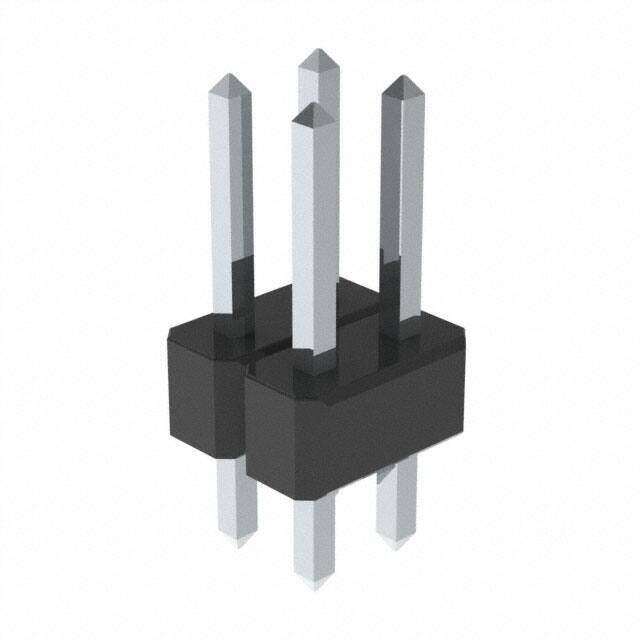

PEC02DAAN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 4POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.1848
≥1 USD $0.1848
≥10 USD $0.15576
≥100 USD $0.119592
≥500 USD $0.1012
≥1000 USD $0.082799
≥3000 USD $0.073594
Inventory: 7253
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Width 5.08mm
Length 5.08mm
Height 2.54mm
Technical
Overall Contact Length 0.450 11.43mm
Housing Color Black
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Number of Contacts 4
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Number of Positions 4
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2010
Packaging Bulk
Operating Temperature -65°C~125°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Phosphor Bronze
