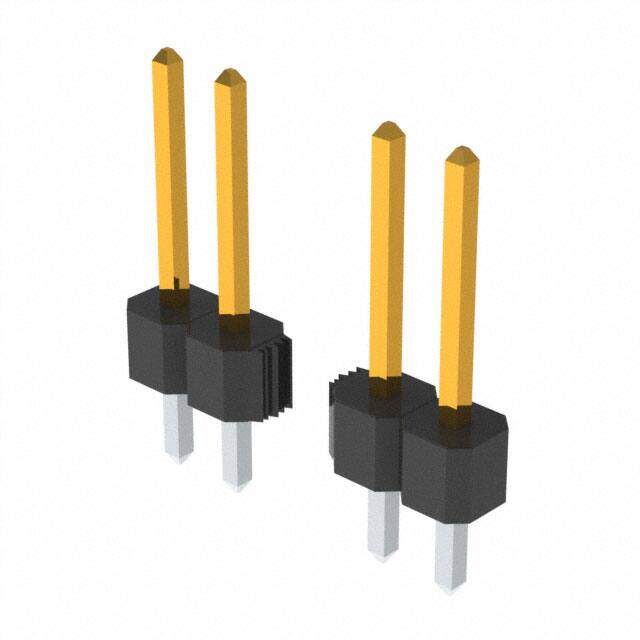

PBC36SFAN image
Favorite
PBC36SFAN image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER .100 SINGL STR 36POS
PDF
/
Buying Options
Total Price: USD $1.87
Unit Price: USD $1.8744
≥1 USD $1.8744
≥10 USD $1.674464
≥100 USD $1.37896
≥500 USD $1.090056
≥1000 USD $0.93808
Inventory: 3977
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic

Technical

Operating Temperature -65°C~125°C
Packaging Bulk
Published 2008
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 36
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Finish - Post Tin
Contact Length - Mating 0.318 8.08mm
Housing Color Black
Overall Contact Length 0.538 13.67mm

Dimensions

Height 2.54mm
Length 91.4mm
Width 2.54mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
