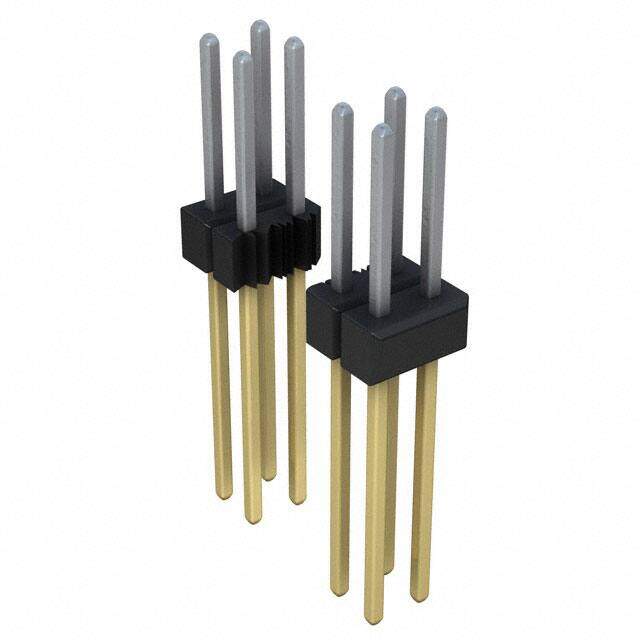

PBC36DFEN image
Favorite
PBC36DFEN image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER .100 DUAL STR 72POS
PDF
/
Buying Options
Total Price: USD $7.28
Unit Price: USD $7.2776
≥1 USD $7.2776
≥10 USD $6.514112
≥100 USD $5.364568
≥500 USD $3.64936
Inventory: 193
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 5.08mm
Length 91.4mm
Height 2.54mm

Technical

Overall Contact Length 0.938 23.83mm
Housing Color Black
Contact Length - Mating 0.318 8.08mm
Contact Finish - Post Tin
Number of Contacts 72
Shrouding Unshrouded
Contact Length - Post 0.520 13.21mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Number of Positions 72
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2005
Packaging Bulk
Operating Temperature -65°C~125°C

Physical

Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
