PBC06DGAN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

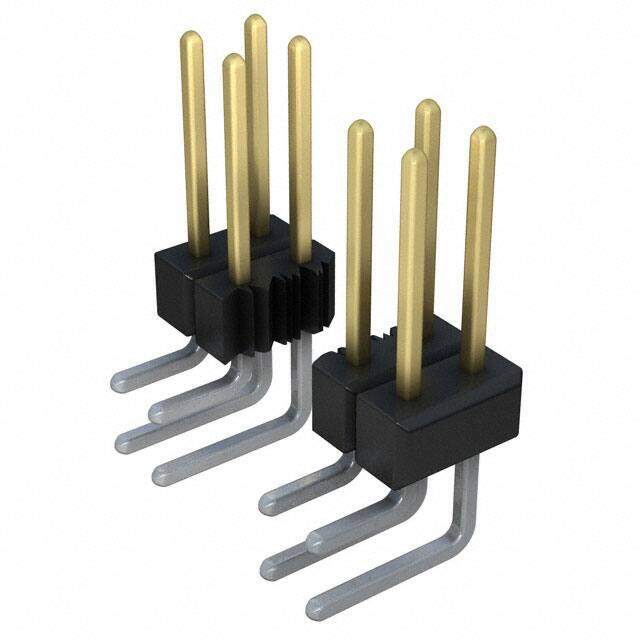

CONN HEADER .100 DUAL R/A 12POS
PDF
/
Buying Options
Total Price: USD $1.2
Unit Price: USD $1.1968
≥1 USD $1.1968
≥10 USD $1.04192
≥100 USD $0.93104
≥500 USD $0.775896
≥1000 USD $0.66506
≥3000 USD $0.633389
Inventory: 864
Minimum: 1
-
+
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2005
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 12
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.240 6.10mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.100 2.54mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.318 8.08mm
Housing Color Black
Mating Contact Pitch 0.1 inch
Dimensions
Height 6.1mm
Length 15.2mm
Width 2.54mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
