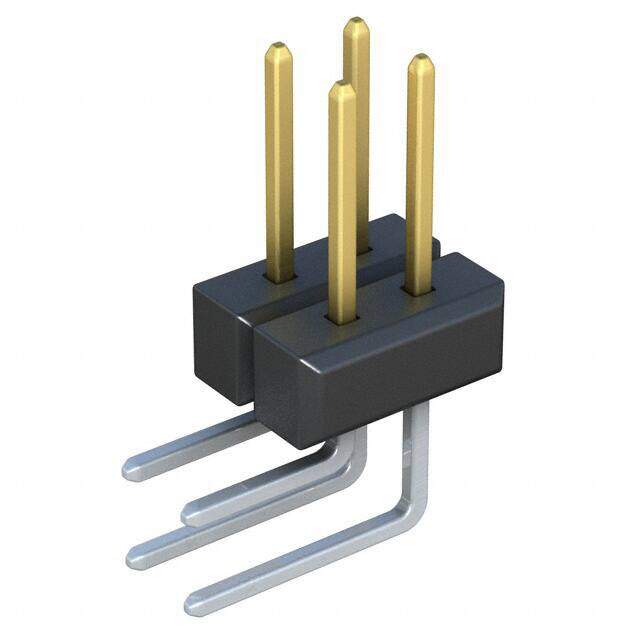

PBC02DBAN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 DUAL R/A 4POS
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.29216
≥100 USD $0.240856
≥500 USD $0.209458
≥1000 USD $0.172806
≥3000 USD $0.151853
Inventory: 841
Minimum: 1
-
+
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2005
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 4
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.240 6.10mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.100 2.54mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
Housing Color Black
Mating Contact Pitch 0.1 inch
Dimensions
Height 6.1mm
Length 5.08mm
Width 2.54mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
