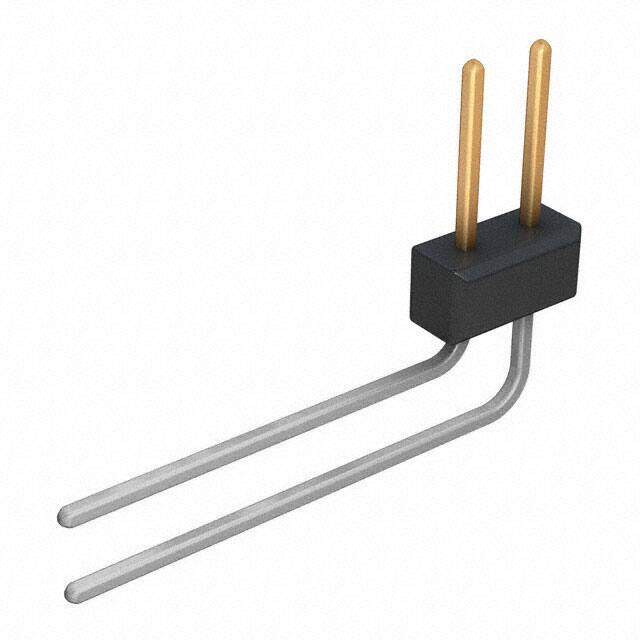

PBC01DBEN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 DUAL R/A 2POS
PDF
/
Inventory: 4036
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.5 inch
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Technical
Mating Contact Pitch 0.1 inch
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.500 12.70mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 0.1 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.240 6.10mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 2
Connector Type Header, Breakaway
Termination Solder
Part Status Discontinued
JESD-609 Code e3
Published 2011
Packaging Bulk
Operating Temperature -65°C~125°C
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
