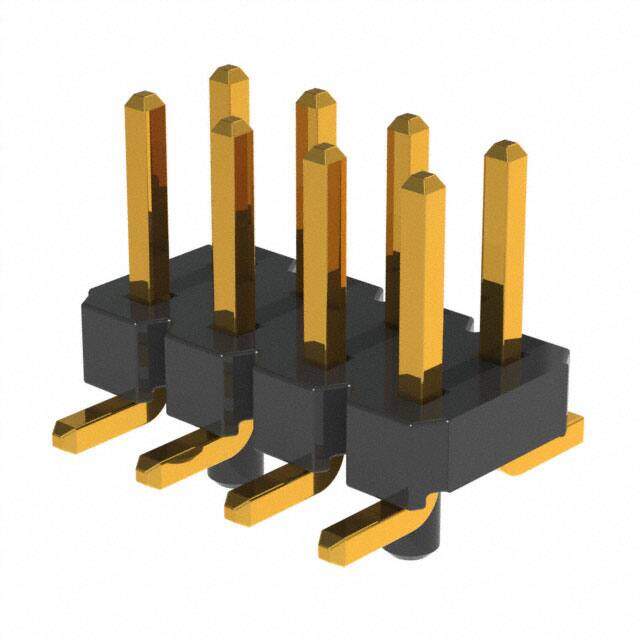

NRPN042MAMP-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM DUAL SMD 8POS
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.536008
≥100 USD $0.512653
≥500 USD $0.41947
≥1000 USD $0.372856
≥3000 USD $0.332904
Inventory: 1997
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2007
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Number of Rows 2
Voltage - Rated 150V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2A
Total Number of Contacts 8
Insulation Height 0.059 1.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.141 3.60mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.079 inch
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 4.5466 mm
Dimensions
Height 1.5mm
Length 8mm
Width 4mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
