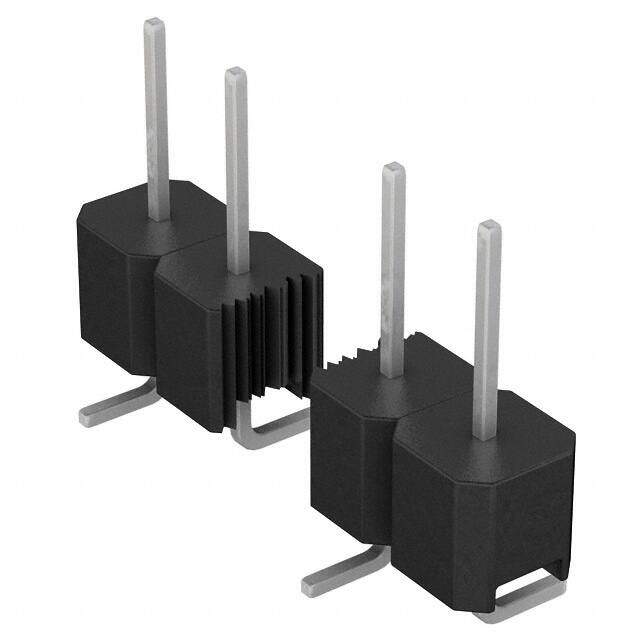

NREC005SABC-M30RC image
Favorite
NREC005SABC-M30RC image
Favorite

NREC005SABC-M30RC

Sullins Connector Solutions
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER .100" SNGL SMD 5POS
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2112
≥1 USD $0.2112
≥10 USD $0.17776
≥100 USD $0.13684
≥500 USD $0.115808
≥1000 USD $0.09475
≥3000 USD $0.084216
Inventory: 749
Minimum: 1
-
+

Technical Details

Physical

Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2015
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A per Contact
Total Number of Contacts 5
Insulation Height 0.098 2.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern STAGGERED
Contact Resistance 20mOhm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
