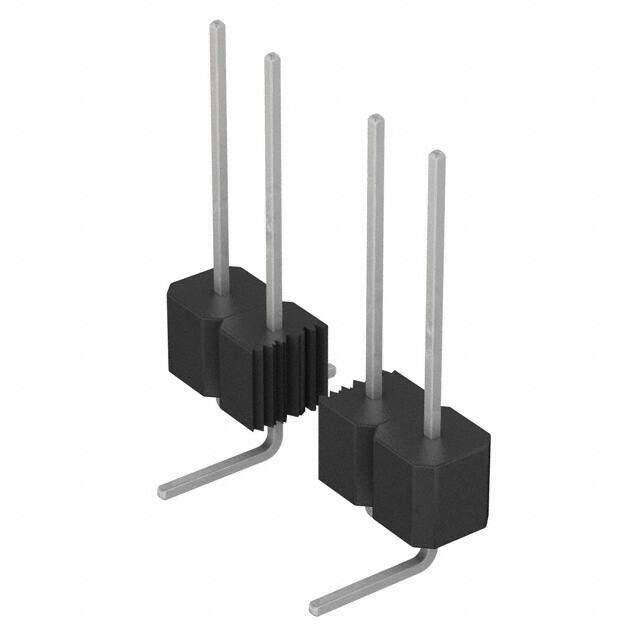

GTC25SFBN-M30
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 25POS .100 SGL SMD
PDF
/
Inventory: 3434
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Contact Plating Lead, Tin
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T
Housing Material Plastic
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Published 2003
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 25
Number of Rows 1
Gender Male
Voltage - Rated 600VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Current Rating (Amps) 3A
Total Number of Contacts 25
Terminal Pitch 5.08mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.318 8.08mm
PCB Contact Pattern STAGGERED
Dimensions
Height 2.54mm
Length 63.5mm
Width 2.54mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
