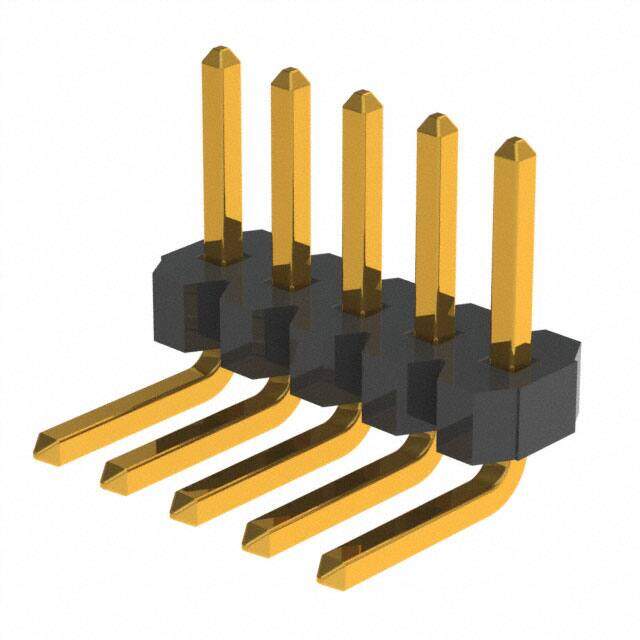

GRPB051VWCN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .050" 5POS PCB R/A
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.3256
≥100 USD $0.268752
≥500 USD $0.233675
≥1000 USD $0.2057
Inventory: 131150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Insulation Height 0.084 2.14mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.098 2.50mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.118 3.00mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.084 inch
Body Depth 0.069 inch
Dimensions
Contact Finish Thickness - Mating Flash
Length - Termination 0.098 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
