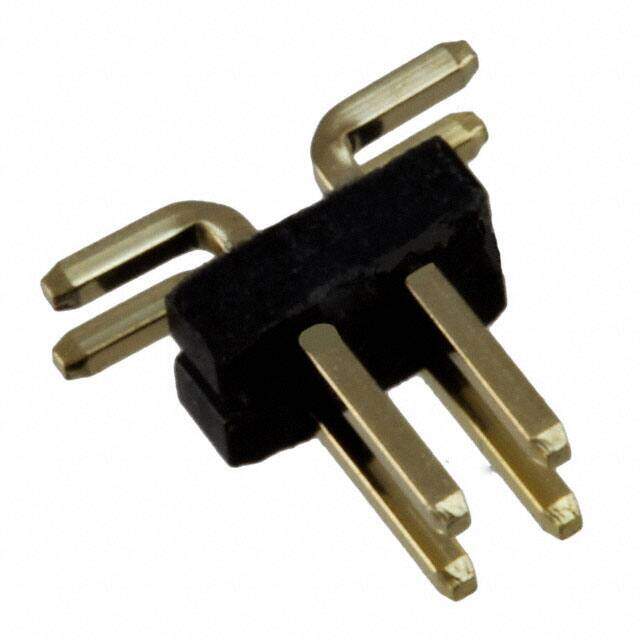

GRPB022VWQS-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 4POS 1.27MM
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.28072
≥100 USD $0.231352
≥500 USD $0.201186
≥1000 USD $0.1771
Inventory: 194134
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2009
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A
Total Number of Contacts 4
Insulation Height 0.039 1.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Unshrouded
Contact Length - Mating 0.118 3.00mm
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
