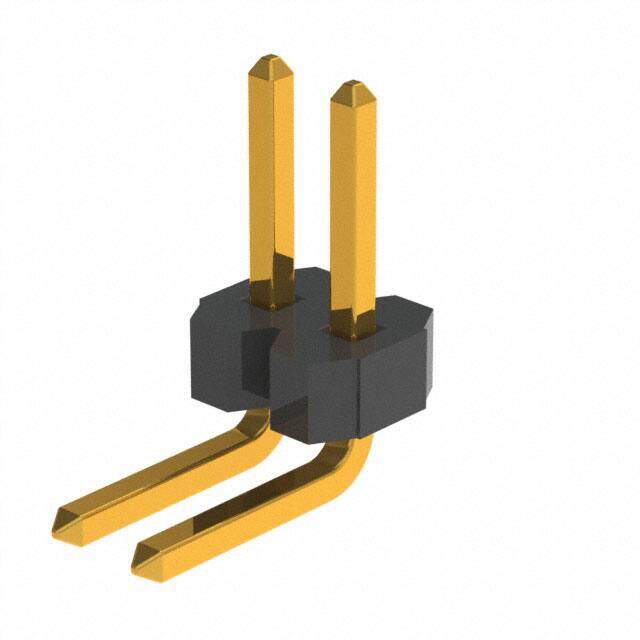

GRPB021VWCN-RC image
Favorite
GRPB021VWCN-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 2POS 1.27MM
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.22
≥1 USD $0.22
≥10 USD $0.1892
≥100 USD $0.147136
≥500 USD $0.126122
≥1000 USD $0.105107
≥3000 USD $0.090094
Inventory: 3725
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length - Termination 0.098 inch
Contact Finish Thickness - Mating Flash
Height 2.34mm

Technical

Mating Contact Pitch 0.05 inch
Rated Current (Signal) 1A
Body Depth 0.069 inch
Body Breadth 0.084 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.118 3.00mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.098 2.50mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.084 2.14mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 1
Number of Positions 2
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2009
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Manufacturer Package Identifier GRPB021VWCN-RC
Insulation Material Polyamide (PA9T), Nylon 9T
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 5 Weeks
