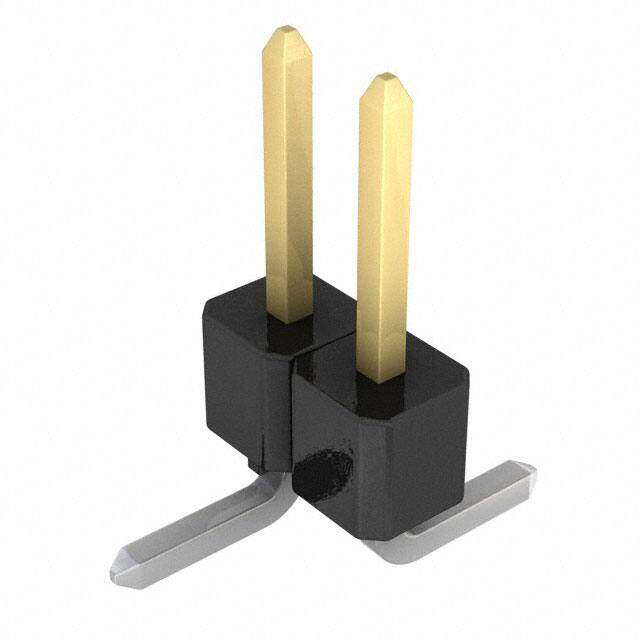

GBC02SABN-M30
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
2 position 2.54 mm pitch SMD Male Breakaway Header
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.22352
≥100 USD $0.173888
≥500 USD $0.149037
≥1000 USD $0.124194
≥3000 USD $0.106454
Inventory: 1213
Minimum: 1
-
+
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T
Housing Material Plastic
Technical
Operating Temperature -65°C~150°C
Packaging Bulk
Published 2007
JESD-609 Code e3
Part Status Active
Termination Solder
Connector Type Header, Breakaway
Number of Positions 2
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Total Number of Contacts 2
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
Housing Color Black
Dimensions
Height 2.54mm
Length 5.08mm
Width 2.54mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
