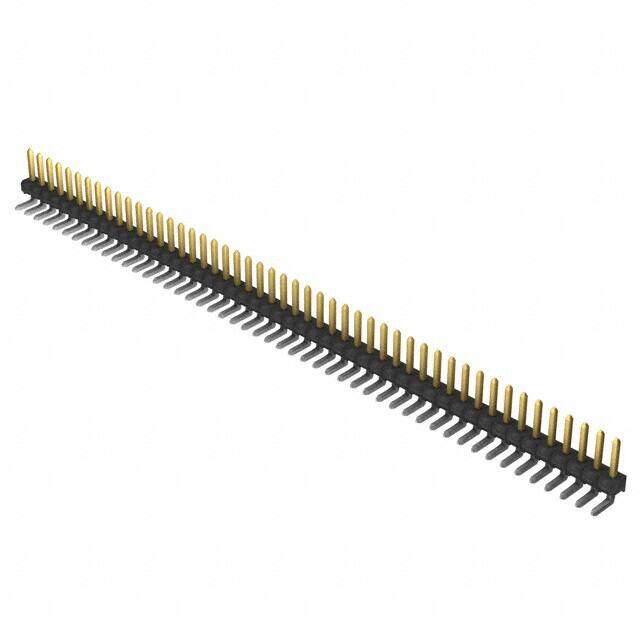

TSW-149-08-L-S-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 49PS .100 SGL R/A AU
PDF
/
Buying Options
Total Price: USD $4.96
Unit Price: USD $4.960274
≥1 USD $4.960274
≥10 USD $4.679501
≥100 USD $4.414627
≥500 USD $4.16474
≥1000 USD $3.928999
Inventory: 4276
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 2.54mm
Length 124mm
Height 3.02mm
Technical
Housing Color Black
UL Flammability Code 94V-0
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.090 2.29mm
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.119 3.02mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Number of Positions 49
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
