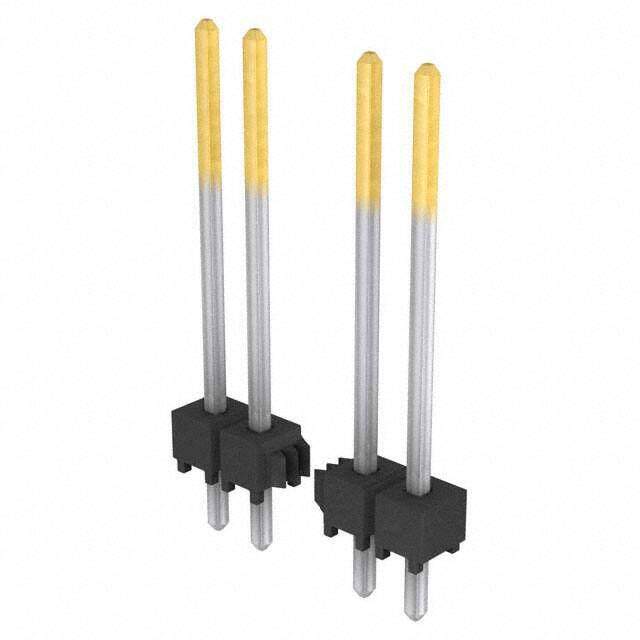

TSW-125-17-S-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 25POS .100 SGL GOLD
PDF
/
Inventory: 4773
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series TSW
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 25
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.620 15.75mm
Housing Color Black
Overall Contact Length 0.830 21.08mm
Dimensions
Height 2.54mm
Length 63.5mm
Width 2.54mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
