TSW-116-23-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

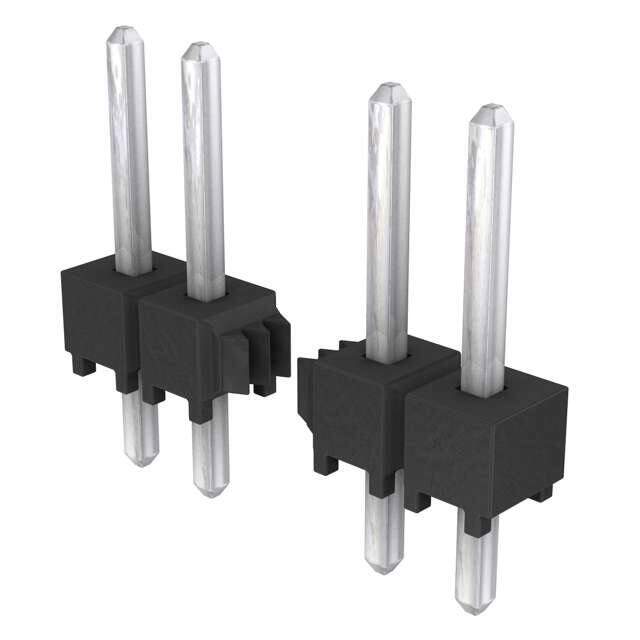

SAMTEC TSW-116-23-T-S Board-To-Board Connector, Vertical, TSW Series, 16 Contacts, Header, 2.54 mm, Through Hole, 1 Rows
PDF
/
Inventory: 9199
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 2.54mm
Length 40.64mm
Technical
Max Current Rating 7.6A
Max Voltage Rating (AC) 550V
Overall Contact Length 0.445 11.30mm
Housing Color Black
Contact Length - Mating 0.230 5.84mm
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.115 2.92mm
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 2.54mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature E.L.P.
Gender Male
Number of Rows 1
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Alternative Model
