TSW-115-08-S-S-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

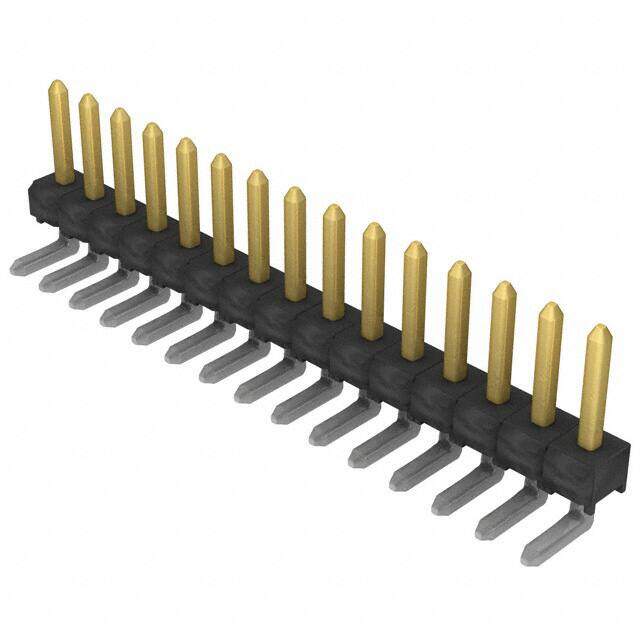

Conn Unshrouded Header HDR 15 POS 2.54mm Solder RA Thru-Hole
PDF
/
Inventory: 6831
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Width 2.54mm
Length 38.1mm
Height 3.02mm
Technical
Max Current Rating 7.6A
Max Voltage Rating (AC) 450V
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.090 2.29mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.119 3.02mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Number of Positions 15
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 0 Weeks
Alternative Model
