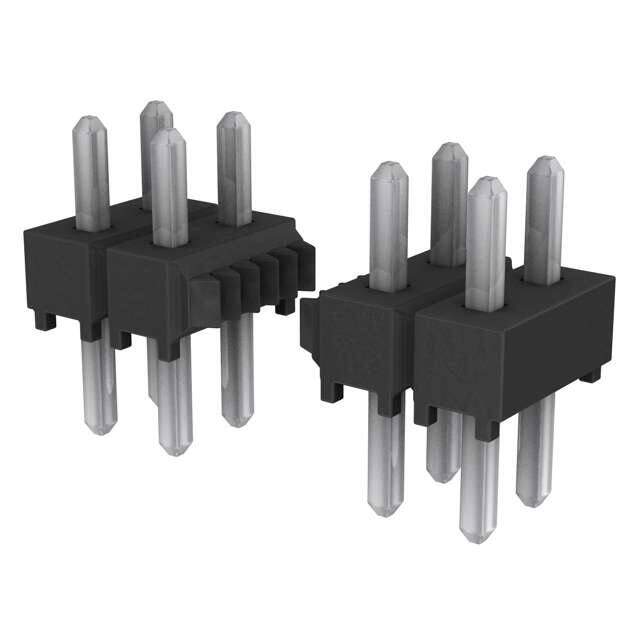

TSW-115-05-T-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 30POS 2.54MM
PDF
/
Inventory: 8141
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 5.08mm
Length 38.1mm
Height 2.54mm
Technical
Overall Contact Length 0.335 8.51mm
Housing Color Black
UL Flammability Code 94V-0
Contact Length - Mating 0.105 2.67mm
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.130 3.30mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature E.L.P.
Gender Male
Number of Rows 2
Number of Positions 30
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Alternative Model
