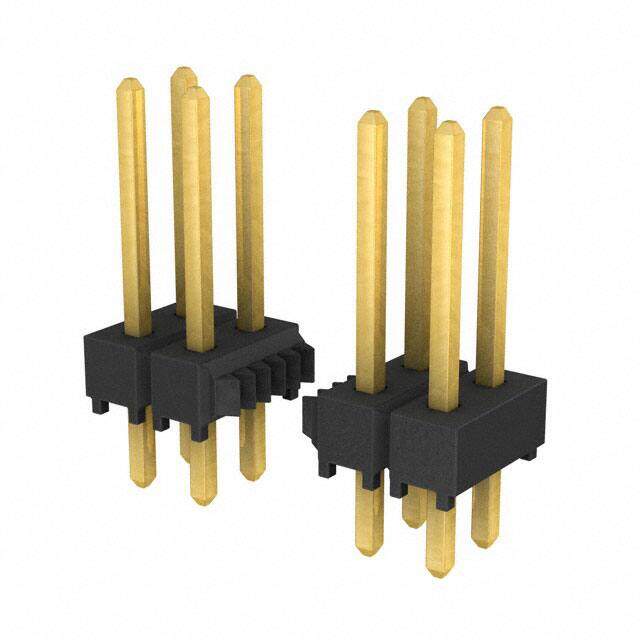

TSW-110-14-G-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 20POS .100" DL GOLD
PDF
/
Buying Options
Total Price: USD $2.13
Unit Price: USD $2.1296
≥1 USD $2.1296
≥10 USD $1.9316
≥100 USD $1.701832
≥500 USD $1.446579
≥1000 USD $1.233848
≥3000 USD $1.122106
Inventory: 686
Minimum: 1
-
+
Technical Details
Technical
Housing Color Black
Overall Contact Length 0.530 13.46mm
Mating Contact Pitch 0.1 inch
Max Voltage Rating (AC) 550V
Max Current Rating 7.6A
UL Flammability Code 94V-0
Body Breadth 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.320 8.13mm
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 5.08mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature E.L.P.
Gender Male
Number of Rows 2
Number of Positions 20
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series TSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length 25.4mm
Width 5.08mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 1 Weeks
Alternative Model
