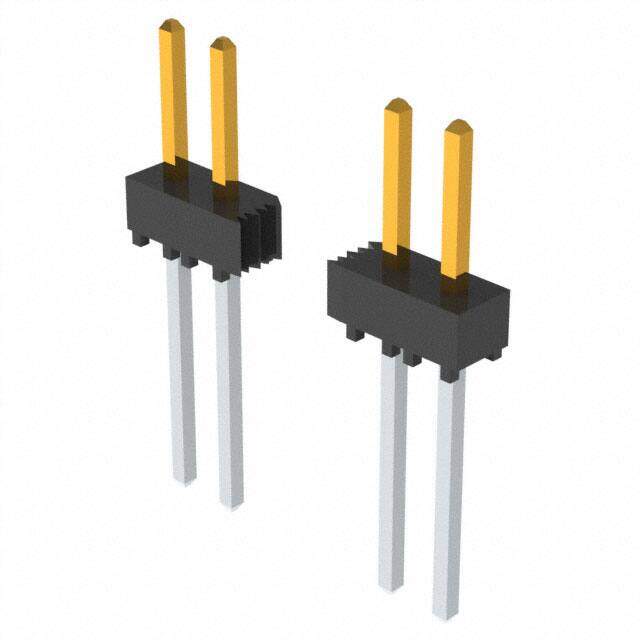

TSW-108-09-S-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Automotive Bulk
PDF
/
Inventory: 2856
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 20.32mm
Technical
Max Current Rating 7.6A
Max Voltage Rating (AC) 550V
Overall Contact Length 0.730 18.54mm
UL Flammability Code 94V-0
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.400 10.16mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 2.54mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature E.L.P.
Gender Male
Number of Rows 1
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TSW
Published 2011
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
