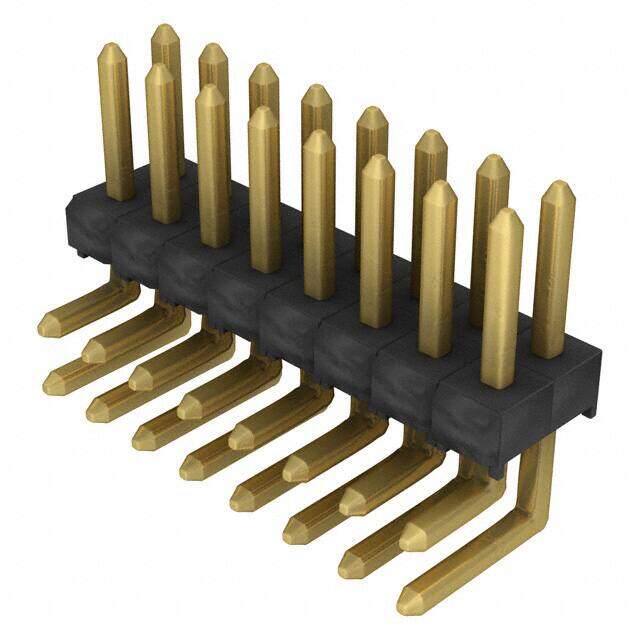

TSW-108-08-G-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 16POS .100 DL R/A AU
PDF
/
Buying Options
Total Price: USD $2.02
Unit Price: USD $2.024
≥1 USD $2.024
≥10 USD $1.75912
≥100 USD $1.571592
≥500 USD $1.309686
≥1000 USD $1.12259
≥3000 USD $0.995368
Inventory: 392
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 1 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series TSW
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 16
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Depth 12.44mm
Insulation Height 0.219 5.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.090 2.29mm
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.1 inch
Housing Color Black
Mating Contact Pitch 0.1 inch
Max Voltage Rating (AC) 450V
Max Current Rating 7.6A
PCB Contact Row Spacing 5.08 mm
Dimensions
Length 20.32mm
Width 2.54mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
