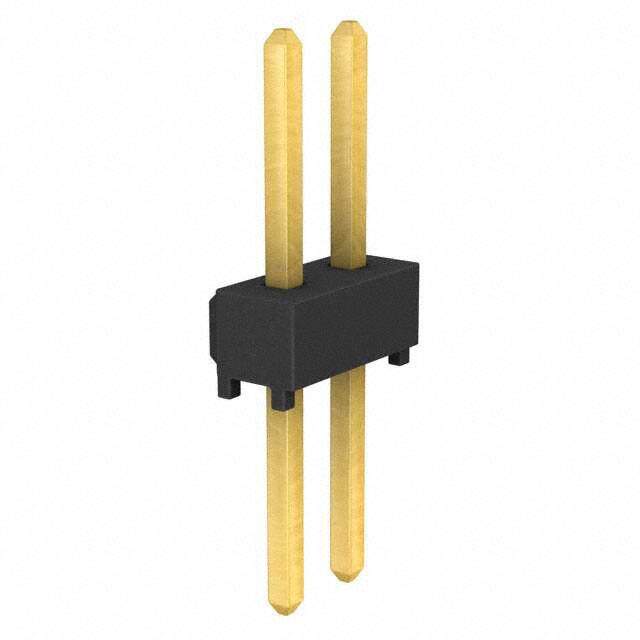

TSW-101-26-G-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2POS .100 DUAL GOLD
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.32032
≥100 USD $0.249128
≥500 USD $0.213523
≥1000 USD $0.177936
≥3000 USD $0.152522
Inventory: 518
Minimum: 1
-
+
Technical Details
Physical
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Polyester
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series TSW
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 5.08mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.126 3.20mm
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.1 inch
Housing Color Black
Overall Contact Length 0.456 11.58mm
Mating Contact Pitch 0.1 inch
Max Voltage Rating (AC) 550V
Max Current Rating 7.6A
Dimensions
Length 2.54mm
Width 5.08mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
