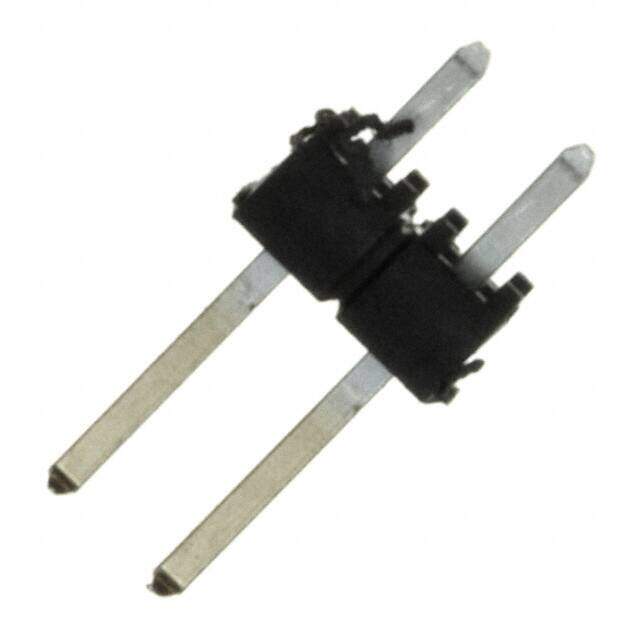

TSW-101-23-S-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2POS .100 DUAL GOLD
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.30536
≥100 USD $0.2376
≥500 USD $0.203667
≥1000 USD $0.169726
≥3000 USD $0.145482
Inventory: 489
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Width 5.08mm
Length 2.54mm
Technical
Max Current Rating 7.6A
Max Voltage Rating (AC) 550V
Mating Contact Pitch 0.1 inch
Overall Contact Length 0.445 11.30mm
Housing Color Black
Body Breadth 0.1 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 5.08mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 0 Weeks
Alternative Model
