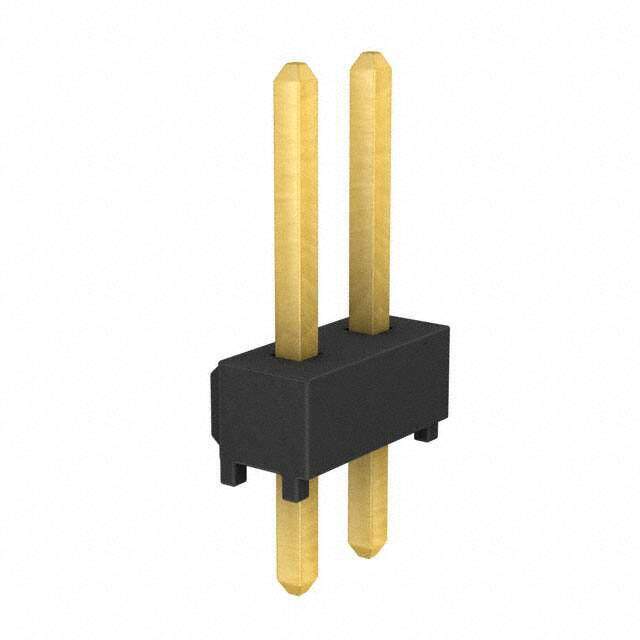

TSW-101-07-G-D

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 2POS
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.22088
≥100 USD $0.171952
≥500 USD $0.147418
≥1000 USD $0.122848
≥3000 USD $0.105292
Inventory: 1163
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Width 5.08mm
Length 2.54mm

Technical

Max Current Rating 7.6A
Max Voltage Rating (AC) 550V
Mating Contact Pitch 0.1 inch
Overall Contact Length 0.430 10.92mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 5.08mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series TSW
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
