TST-113-01-L-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

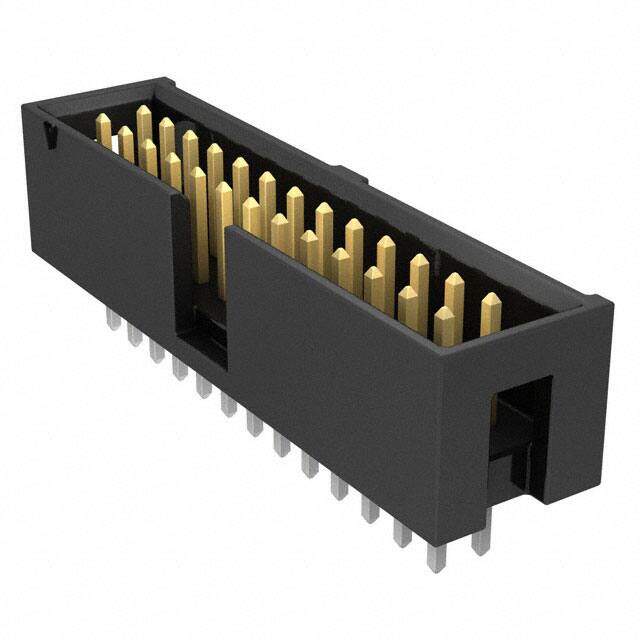

SAMTEC - TST-113-01-L-D - HEADER, 2.54MM, BOXED, 2X13WAY
PDF
/
Buying Options
Total Price: USD $3.24
Unit Price: USD $3.2384
≥1 USD $3.2384
≥10 USD $2.64
≥100 USD $2.244
≥500 USD $1.9888
≥1000 USD $1.859
Inventory: 268
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Length 40.64mm
Technical
Polarization Key POLARIZED HOUSING
Max Current Rating 3A
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Overall Contact Length 0.480 12.19mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.365 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.250 6.35mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.350 8.89mm
Depth 9.27mm
Orientation Straight
Current Rating (Amps) 3.4A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 26
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot
JESD-609 Code e3
Series Flex Stack, TST
Published 1999
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 4 Weeks
Alternative Model
