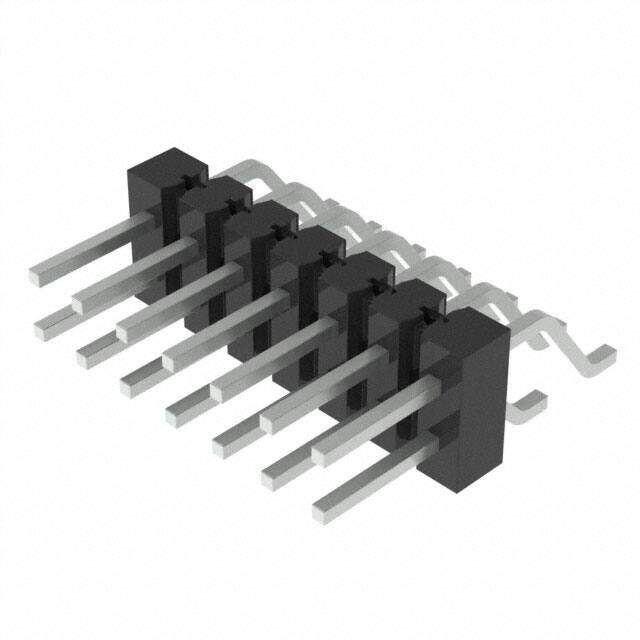

TSM-107-01-T-DH-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA SMD T/R
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
≥10 USD $1.3904
≥100 USD $1.2408
Inventory: 475
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 17.78mm
Technical
Max Current Rating 7A
Max Voltage Rating (AC) 475V
UL Flammability Code 94V-0
Contact Length - Mating 0.230 5.84mm
Shrouding Unshrouded
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.240 6.10mm
Depth 15.09mm
Orientation Right Angle
Total Number of Contacts 14
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Number of Positions 14
Connector Type Header
ECCN Code EAR99
Termination Solder
Part Status Active
Feature Pick and Place
JESD-609 Code e3
Series TSM
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
