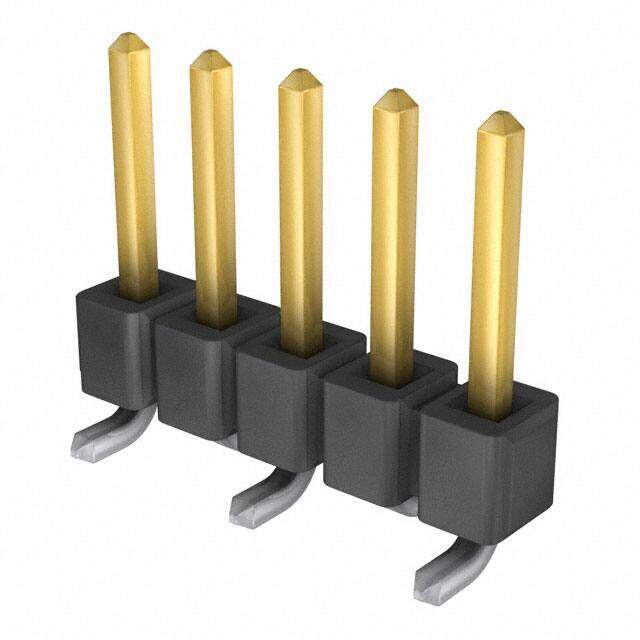

TSM-105-01-LM-SV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST SMD Automotive Tube
PDF
/
Inventory: 8212
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2016
Series TSM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
Connector Type Header
Number of Positions 5
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 5
Orientation Straight
Depth 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern STAGGERED
UL Flammability Code 94V-0
Max Voltage Rating (AC) 475V
Max Current Rating 7A
Dimensions
Length 12.7mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
