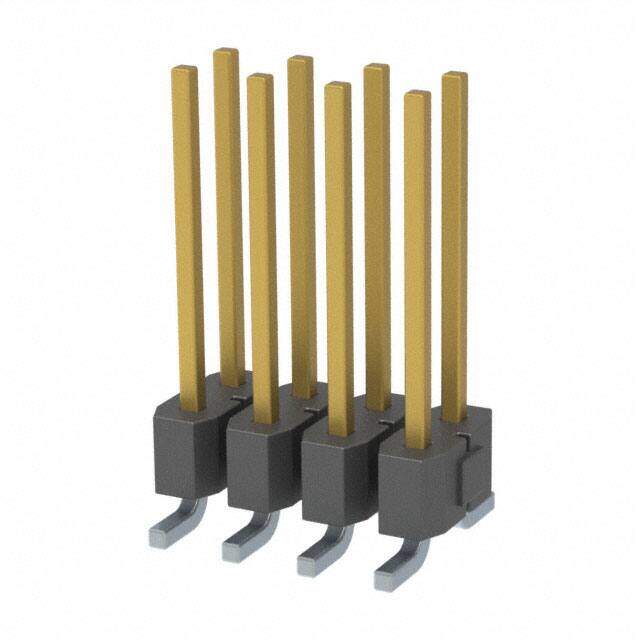

TSM-104-03-S-DV-TR

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST SMD T/R
PDF
/
Inventory: 5355
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series TSM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 8
Number of Rows 2
Gender Male
Additional Feature E.L.P.
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 8
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.4 inch
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.420 10.67mm
PCB Contact Pattern RECTANGULAR
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.1 inch
Dielectric Withstanding Voltage 1000VAC V

Dimensions

Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
