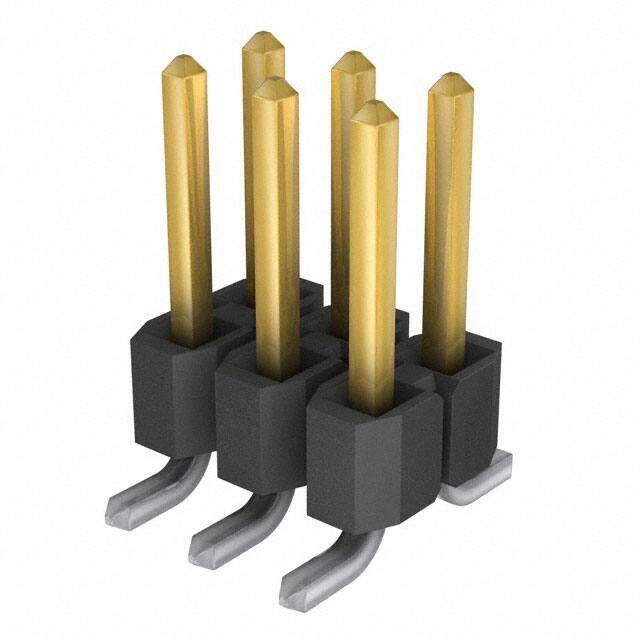

TSM-103-01-S-DV-A-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $1.83
Unit Price: USD $1.8304
≥1 USD $1.8304
≥10 USD $1.6016
Inventory: 417
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series TSM
JESD-609 Code e3
Feature Board Guide, Pick and Place
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 6
Number of Rows 2
Gender Male
Additional Feature E.L.P.
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 6
Orientation Straight
Depth 5.08mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Mating Contact Pitch 0.1 inch
Max Voltage Rating (AC) 475V
Max Current Rating 7A
Dimensions
Length 7.62mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
