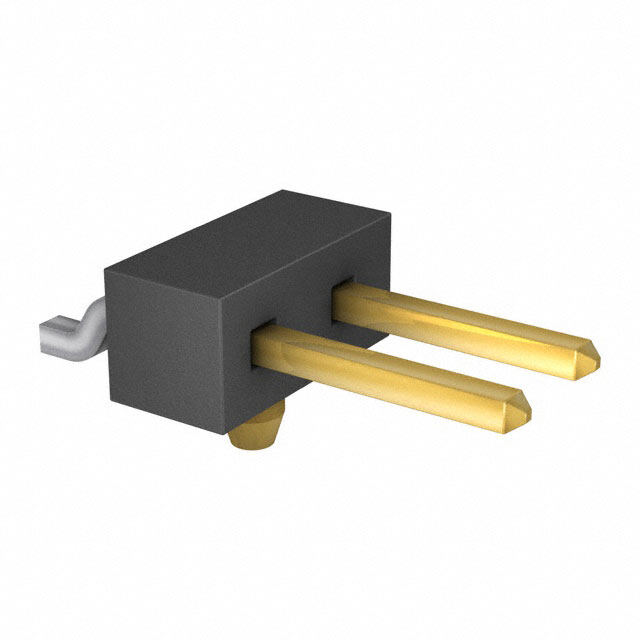

TSM-102-01-L-SH-A-P-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA SMD T/R
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.2408
≥1 USD $1.2408
≥10 USD $1.0384
≥100 USD $0.88
Inventory: 1517
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2015
Series TSM
JESD-609 Code e3
Feature Board Guide, Pick and Place
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Number of Rows 1
Gender Male
Additional Feature E.L.P.
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 2
Orientation Right Angle
Depth 10.92mm
Insulation Height 0.120 3.05mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Finish - Post Tin
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Max Voltage Rating (AC) 475V
Max Current Rating 7A
Dimensions
Length 5.08mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
