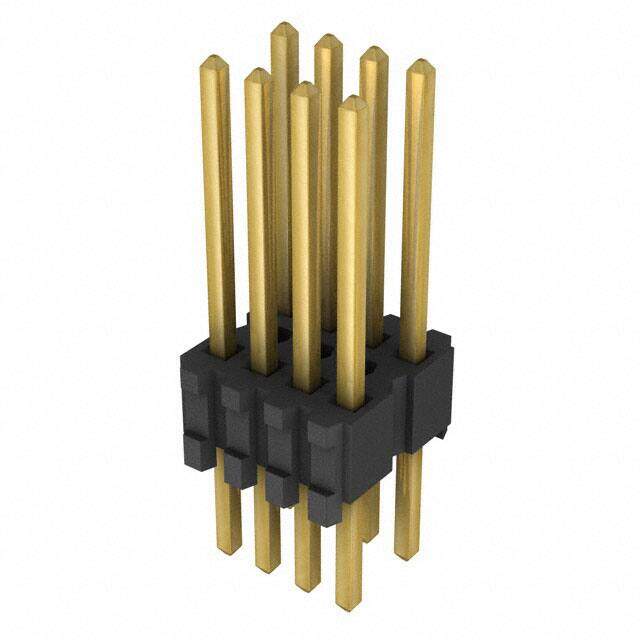

TMS-104-53-G-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 8POS .050 T/H GOLD
PDF
/
Buying Options
Total Price: USD $1.68
Unit Price: USD $1.6808
≥1 USD $1.6808
≥10 USD $1.3024
≥100 USD $1.056
≥500 USD $0.8976
≥1000 USD $0.704
≥3000 USD $0.6424
Inventory: 164
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2004
Series TMS
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5A per Contact
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.285 7.24mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.196 inch
Overall Contact Length 0.505 12.83mm
Mating Contact Pitch 0.05 inch
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
