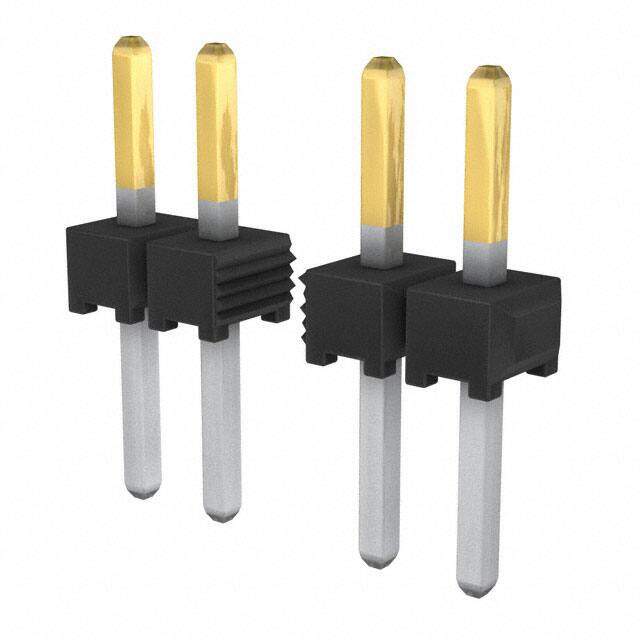

TMM-117-01-S-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 17 POS 2mm Solder ST Thru-Hole Automotive Bulk
PDF
/
Inventory: 7772
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2000
Series TMM
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 17
Number of Rows 1
Gender Male
Additional Feature ELP, FLEXYZ, LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.2A per Contact
Orientation Straight
Depth 1.97mm
Insulation Height 0.059 1.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Voltage - Rated AC 250V
Reliability COMMERCIAL
Contact Length - Post 0.138 3.50mm
Shrouding Unshrouded
Number Of PCB Rows 1
Lead Pitch 2mm
Contact Finish - Post Tin
Contact Length - Mating 0.126 3.20mm
PCB Contact Pattern RECTANGULAR
Housing Color Black
Overall Contact Length 0.323 8.20mm
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 500V
Polarization Key POLARIZED HOUSING
Dimensions
Length 34mm
Width 1.97mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
