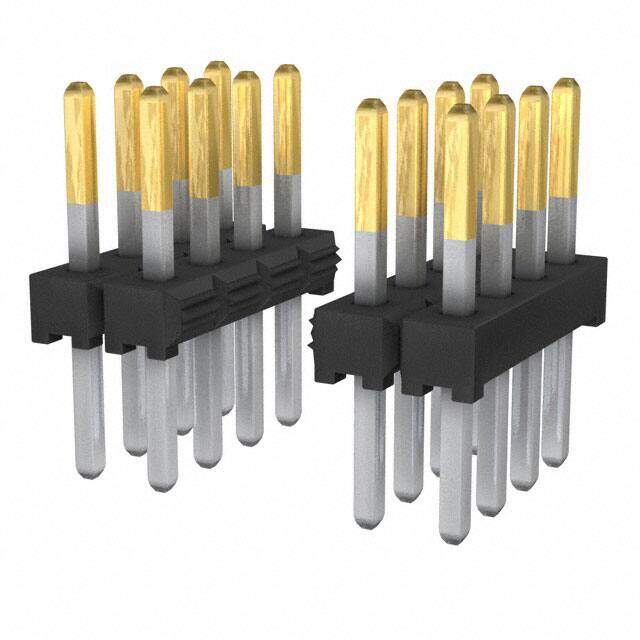

TMM-115-01-L-Q
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 60POS QUAD 2MM T/H
PDF
/
Inventory: 7177
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2000
Series TMM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 60
Number of Rows 4
Gender Male
Additional Feature ELP, FLEXYZ, LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.2A per Contact
Orientation Straight
Terminal Pitch 2mm
Depth 8mm
Insulation Height 0.059 1.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.138 3.50mm
Shrouding Unshrouded
Number Of PCB Rows 4
Contact Finish - Post Tin
Contact Length - Mating 0.126 3.20mm
PCB Contact Pattern RECTANGULAR
Housing Color Black
Overall Contact Length 0.323 8.20mm
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 500V
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 2.0066 mm
Dimensions
Length 30mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
RoHS Status ROHS3 Compliant
