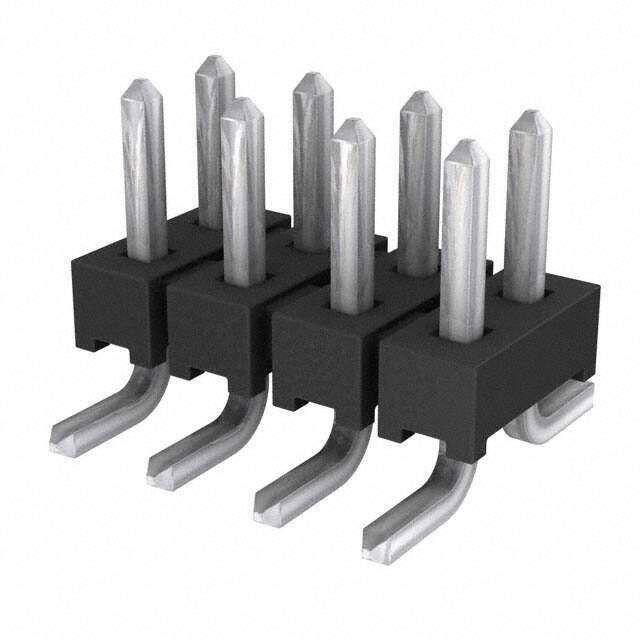

TMM-104-01-T-D-SM
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 8POS 2MM
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.837239
≥1 USD $0.837239
≥10 USD $0.789854
≥100 USD $0.745143
≥500 USD $0.702957
≥1000 USD $0.663168
Inventory: 5790
Minimum: 1
-
+
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2000
Series TMM
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Number of Rows 2
Gender Male
Additional Feature ELP; LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.2A per Contact
Total Number of Contacts 8
Orientation Straight
Depth 3.94mm
Insulation Height 0.059 1.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 250V
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Length - Mating 0.126 3.20mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.155 inch
UL Flammability Code 94V-0
Housing Color Black
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 500V
Max Current Rating 3.9A
Dimensions
Length 8mm
Width 3.94mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
