TMM-104-01-T-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

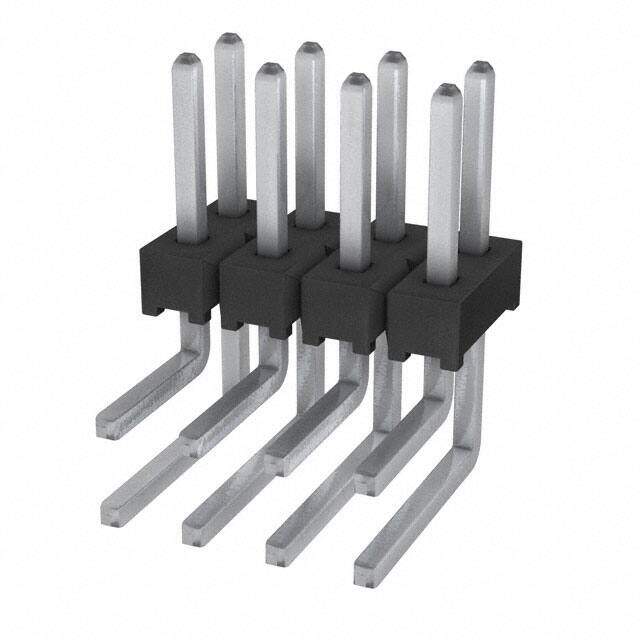

SAMTEC TMM-104-01-T-D-RA Board-To-Board Connector, Right Angle, TMM Series, 8 Contacts, Header, 2 mm, Through Hole, 2 Rows
PDF
/
Inventory: 2913
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 8mm
Technical
Max Current Rating 3.9A
Max Voltage Rating (AC) 500V
Mating Contact Pitch 0.079 inch
Body Breadth 0.155 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.126 3.20mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Voltage - Rated AC 250V
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.155 3.94mm
Depth 7.97mm
Orientation Right Angle
Current Rating (Amps) 3.2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Gender Male
Number of Rows 2
Number of Positions 8
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TMM
Published 2012
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
