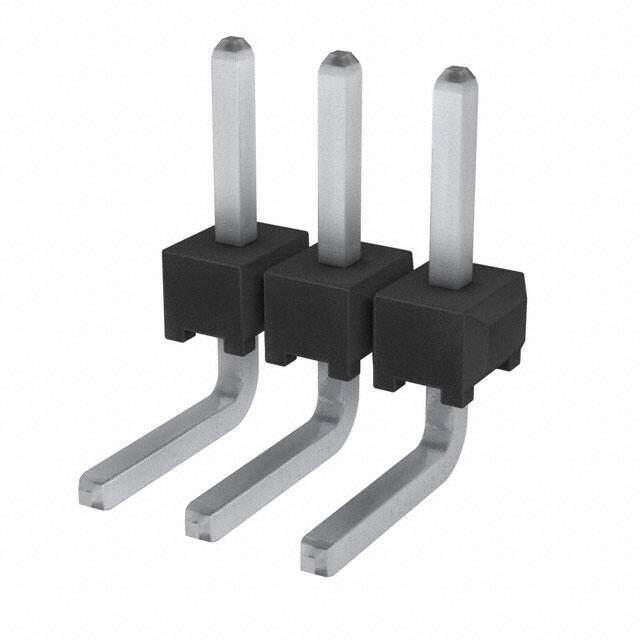

TMM-103-01-T-S-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SAMTEC - TMM-103-01-T-S-RA - STIFTLEISTE, 2.0MM, RWINKL, 1X3POL
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.2728
≥100 USD $0.22
≥500 USD $0.1848
≥1000 USD $0.132
≥3000 USD $0.1144
Inventory: 4205
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 6mm
Technical
Mating Contact Row Spacing 0.079 inch
Max Current Rating 3.9A
Max Voltage Rating (AC) 500V
Mating Contact Pitch 0.079 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.126 3.20mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Reliability COMMERCIAL
Voltage - Rated AC 250V
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.079 2.00mm
Depth 5.97mm
Terminal Pitch 2mm
Orientation Right Angle
Current Rating (Amps) 3.2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Gender Male
Number of Rows 1
Number of Positions 3
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series TMM
Published 2012
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
