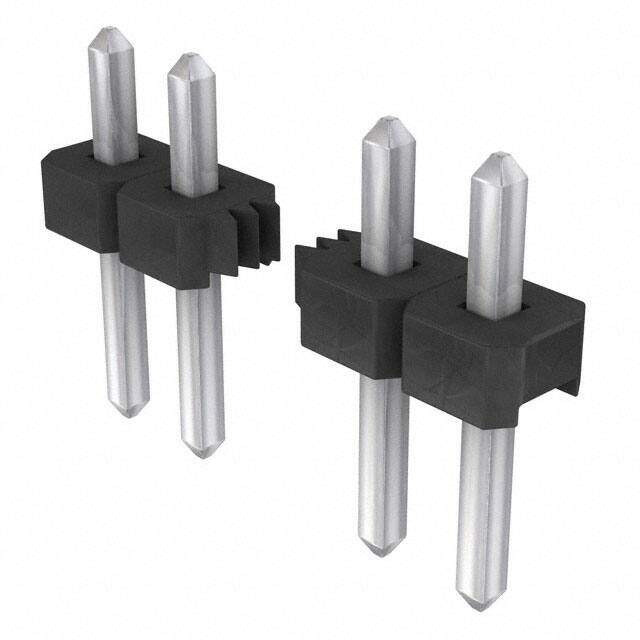

TLW-138-05-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 38POS SNGL TIN
PDF
/
Inventory: 2920
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 2.45mm
Length 96.5mm
Height 1.52mm
Technical
Overall Contact Length 0.335 8.51mm
Body Depth 0.06 inch
Housing Color Black
Body Breadth 0.098 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.105 2.67mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.170 4.32mm
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.060 1.52mm
Terminal Pitch 2.54mm
Current Rating (Amps) 5.2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Gender Male
Number of Rows 1
Number of Positions 38
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Flex Stack, TLW
Published 2006
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
