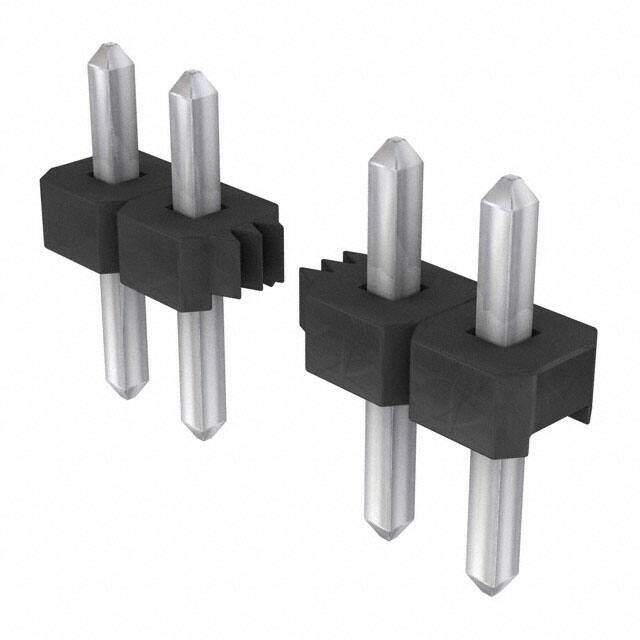

TLW-135-06-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 35POS SNGL TIN
PDF
/
Inventory: 5423
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2006
Series Flex Stack, TLW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 35
Number of Rows 1
Gender Male
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5.2A per Contact
Terminal Pitch 2.54mm
Insulation Height 0.060 1.52mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reliability COMMERCIAL
Contact Length - Post 0.135 3.43mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.105 2.67mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.098 inch
Housing Color Black
Body Depth 0.06 inch
Overall Contact Length 0.300 7.62mm
Dimensions
Height 1.52mm
Length 88.9mm
Width 2.45mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
