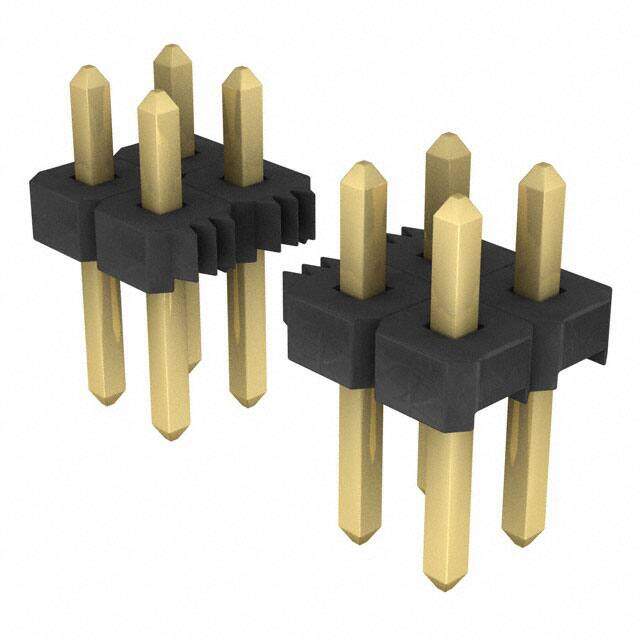

TLW-111-05-G-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 22 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 9605
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series Flex Stack, TLW
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 22
Number of Rows 2
Gender Male
Additional Feature LOW PROFILE
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5.2A per Contact
Orientation Straight
Depth 5.03mm
Insulation Height 0.060 1.52mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.170 4.32mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.105 2.67mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.198 inch
Housing Color Black
Overall Contact Length 0.335 8.51mm
Mating Contact Pitch 0.1 inch
Dimensions
Length 27.94mm
Width 5.03mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post Flash
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
