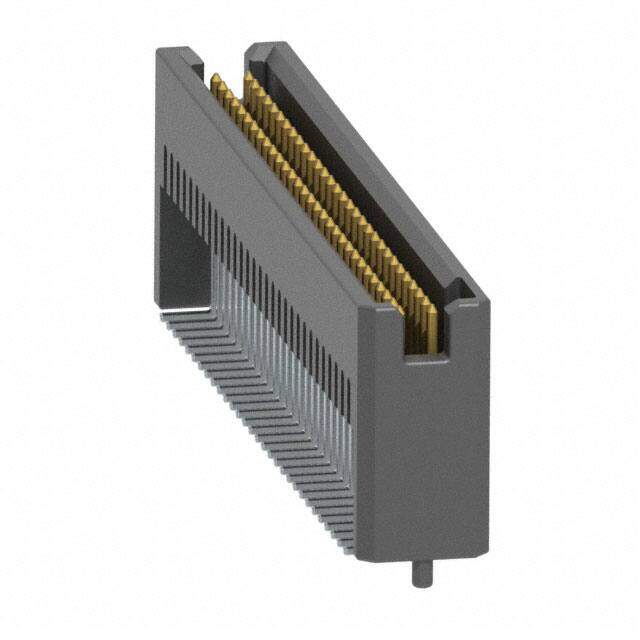

TFM-130-32-L-D-A-K-TR image
Favorite
TFM-130-32-L-D-A-K-TR image
Favorite

TFM-130-32-L-D-A-K-TR

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Rectangular Connector Header
PDF
/
Inventory: 6876
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 1 Weeks

Physical

Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2017
Series Tiger Eye? TFM
JESD-609 Code e3
Feature Board Guide, Pick and Place
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 60
Number of Rows 2
Gender Male
Voltage - Rated 275VAC
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2.9A per Contact
Insulation Height 0.435 11.05mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.139 3.53mm

Dimensions

Contact Finish Thickness - Mating 15.0μin 0.38μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
